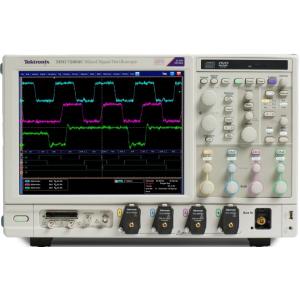

Used Pre Owned Tektronix MSO72004C Mixed Signal Oscilloscope 20GHz
The MSO/DPO70000 Series oscilloscopes' unique capabilities combined with exceptional signal acquisition performance and analysis accelerate your measurement tasks.
Features and benefits for MSO72004C
• Superior signal integrity and excellent signal-to-noise ratio – observe the truest representation of your waveform
• Pinpoint® triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
• Visual Trigger – precisely qualify triggers and find unique events in complex waveforms
• Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest
• Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY
• P7700, P7600, and P7500 TriMode™ probing system – perfectly matched signal connectivity, with calibration to probe tip
• P6780 and P6717A high-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections to today's fast digital signals (MSO70000DX Series only
Applications of MSO72004C
• Design verification including signal integrity, jitter, and timing analysis
• Design characterization for high-speed, sophisticated designs
• Certification testing of serial data streams for industry standards
• Memory bus analysis and debug
• Prototype turn-on and power supply verification
• Research and investigation of transient phenomena • Production testing of complex systems
• Spectral analysis of transient or wide-bandwidth RF signals
| Option | Description |
| 10XL | Extended record length: 125 M/Ch |
| 20XL | Extended record length: 250 M/Ch |
| 50XL | Extended record length: 1 G/Ch (2 Channels) 500 M/Ch (4 Channels) |
| XL02 | Extended record length: Upgrade from standard to 2XL (31.25 M/Ch) |
| XL05 | Extended record length: Upgrade from standard to 5XL (62.5 M/Ch) |
| XL010 | Extended record length: Upgrade from standard to 10XL (125 M/Ch) |
| XL020 | Extended record length: Upgrade from standard to 20XL (250 M/Ch) |
| XL050 | Extended record length: Upgrade from standard to 50XL (1G/Ch (2 Channels) 500M/Ch (4 Channels)) |
| XL25 | Extended record length: Upgrade from 2XL (31.25M/Ch) to 5XL (62.5M/Ch) |
| XL210 | Extended record length: Upgrade from 2XL (31.25M/Ch) to 10XL (125M/Ch) |
| XL220 | Extended record length: Upgrade from 2XL (31.25M/Ch) to 20XL (250M/Ch) |
| XL250 | Extended record length: Upgrade from 2XL (31.25M/Ch) to 50XL (1G/Ch (2 Channels) 500M/Ch (4 Channels)) |
| XL510 | Extended record length: Upgrade from 5XL (62.5 M/Ch) to 10XL (125 M/Ch) |
| XL520 | Extended record length: Upgrade from 5XL (62.5 M/Ch) to 20XL (250 M/Ch) |
| XL550 | Extended record length: Upgrade from 5XL (62.5 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels)) |
| XL1020 | Extended record length: Upgrade from 10XL (125 M/Ch) to 20XL (250 M/Ch) |
| XL1050 | Extended record length: Upgrade from 10XL (125 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels)) |
| XL2050 | Extended record length: Upgrade from 20XL (250 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels)) |
